Will it fit in my car?

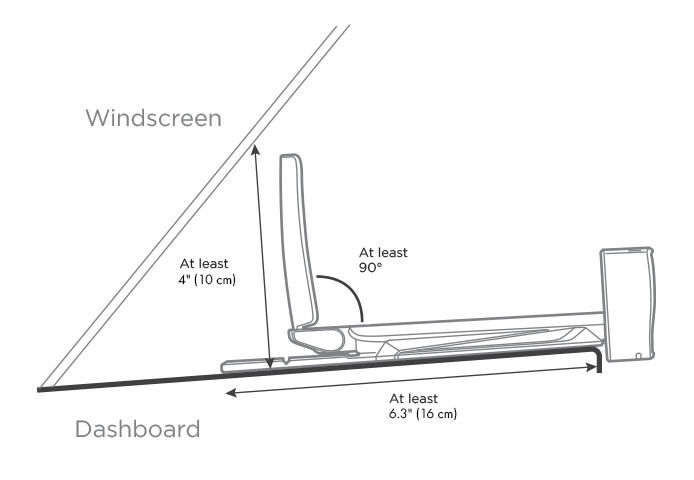

It is crucial that the device is placed in front of the driver, since the viewing angle of the projection is very narrow. Another important thing is that the device lens should be open straight at 90°. Make sure that you have enough space on your dashboard between your dash and the windshield.

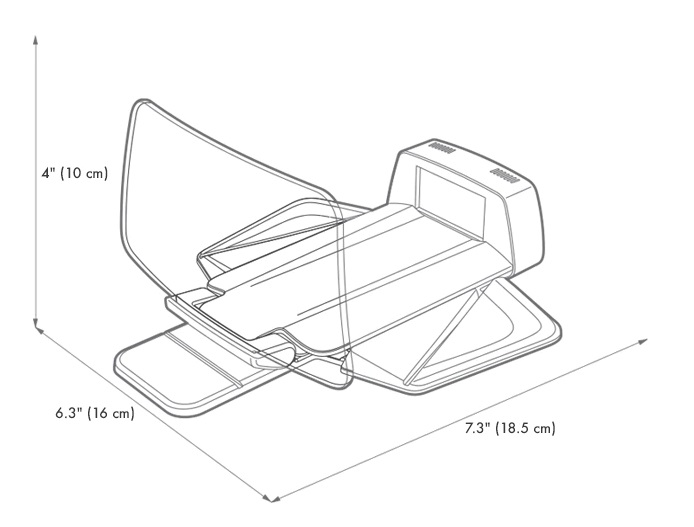

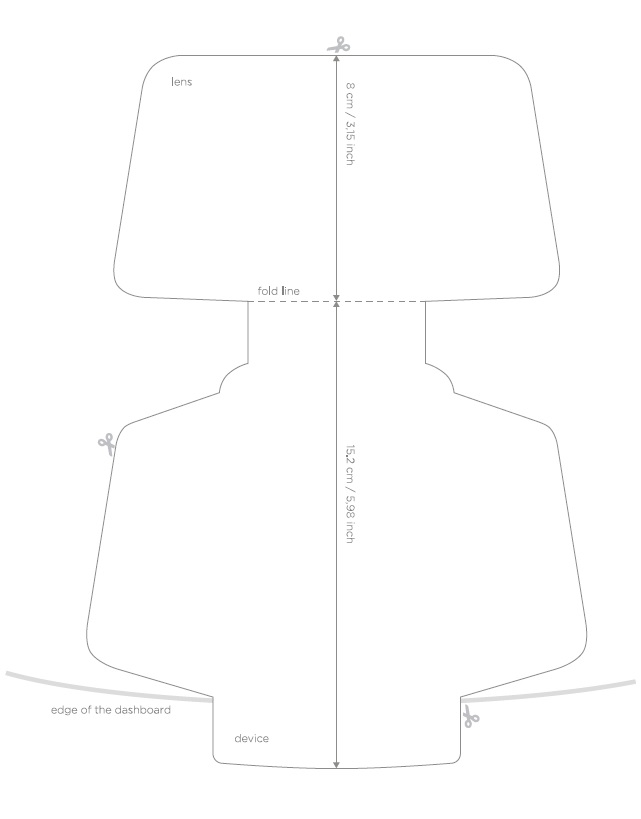

Click here to download and print the drawing of the device. Then cut out the shape and fold as indicated on the mockup. After that place it on the dash to see if there's enough space for the lens.

You may also find quite helpful the video by a YouTube blogger Alex AutoFun, he provides a detailed review on the cut-out template measurement process.

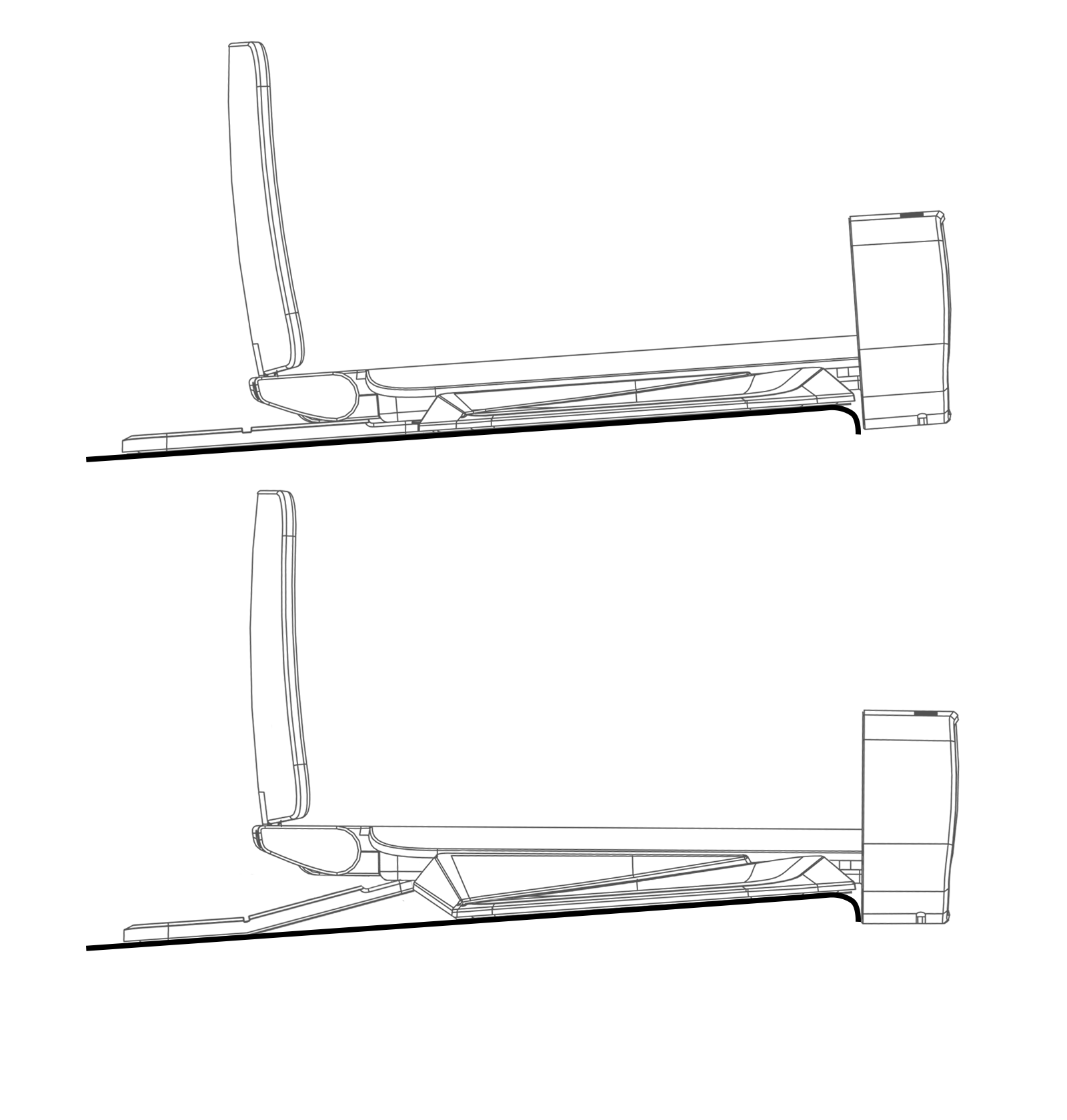

Please note that wings of HUDWAY Drive mount are bendable and can be attached on basically each degree of dashboards curvature. The back part of the mount can flex and lift up the lens to approximately 3 cm (1,18 inches) thereby shaping a triangle adaptor for a dashboard with a conspicuous slope.

You can also use AR to see HUDWAY Drive on your dashboard:

iOS (6.8 MB) open this link in Safari on your iPhone or iPad.

Android (8.5 MB) use AR Viewer or similar app to open this file.

Here are the car models where HUDWAY Drive won't fit in, due to the lack of enough space between the dash and the windshield, or because of the dash shape:

• Audi A3 / S3 (2013–2020)
• BMW 3 Series (2005–2011 and 2011–2019)
• BMW 4 Series (2020–2022)
• Chevrolet Camaro (2010–2015 and 2016–present)
• Honda Civic (1995–2000, 2005–2012 and 2011–2017)
• Honda CR-V (2017–present)
• Honda HR-V (1998–2006)
• Honda Insight (2010–2014)
• Honda Ridgeline (2006–2014)
• Infiniti Q70 (2013–2019)
• Jeep Wrangler TJ (1996–2006), JL (2017–present)
• Lexus LX (1998–2007)
• Lexus RX (2004–2009) / Toyota Harrier in JP
• Mazda 3 (2009–2013 and 2014–2018)
• Mercedes-Benz G-Class (all generations)
• Mercedes-Benz SLK-Class (2011–2020)
• Mitsubishi Lancer (2008–2017) / Galant Fortis in JP, Proton Inspira in MY
• Peugeot 3008 (2016–present)
• Renault Megane (2002–2008)
• Fiat 124 Spider (2017–present)
• Toyota Corolla (2002–2008 and 2007–2013)
• Toyota Prius (all generations)
• Toyota Previa (2000–2005 and 2006–2019) / Tarago in AU, Estima Aeras in JP
• Toyota Tundra (2000–2006)
• Volkswagen Passat (2014–present)
